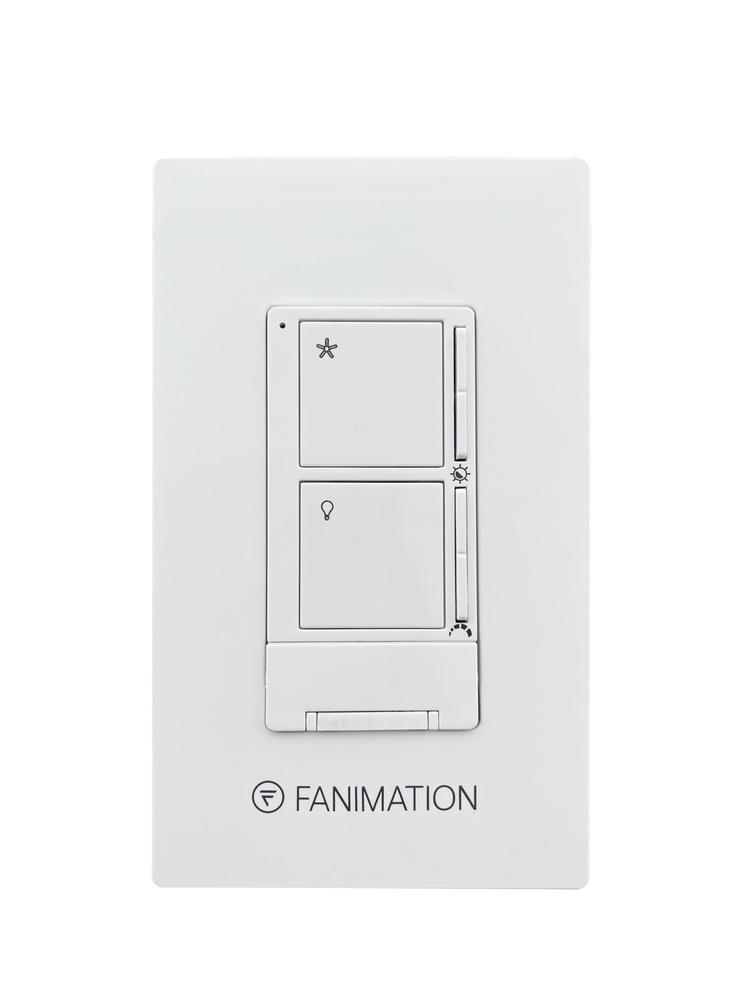

Wall Control - 3 Fan Speeds and CCT LT - White

Wall Control - 3 Fan Speeds and CCT LT - White by Fanimation

  • Part Number: WT503WH
  • UPC: 00840522905076
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
This wall-mounted control will allow you to use your ceiling fan, light control and light temperature settings with ease. This device controls three fan speeds and uses a slide switch to control on/off functionality. This ceiling fan control features the correlated color temperature (CCT) of the fan's light kit - 3,000K, 4,000K or 5,000K for warm, white or cool. Receiver unit not included.
Specifications
Details
Category:
Fan Accessories
Subcategory:
Fan Wall Mount Controls
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
Dry Rated
Prop 65 /vendors/vendorImages prop65.png
Location Rating:
Dry Rated
Finish:
White
Option:
Prop 65
Family:
Controls
Voltage:
120 V
Harmonized Codes:
8414.90.1040
Ship Carton Height:
5.12
Ship Carton Length:
3.54
Ship Carton Width:
2.95
Ship Weight:
0.37
Sold By:
Each
Warranty:
1 Year
Weight:
0.3
Carton Cubic Feet:
0.03
Case Height:
11.42
Case Length:
15.75
Case Quantity:
40
Case Weight Pounds:
19
Case Width:
15.16
CEC Uploaded:
No
Country of Origin:
Taiwan
DOE-FTC Uploaded:
No
Exempt from DOE Procedure:
Yes
Indoor:
Yes
Location Rating:
Dry Rated
Number Of Speeds:
3
Prop 65:
View
Prop 65 Description:
View
Regulated Product:
Yes
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Manufactured By:
Fanimation
Other Details
COMPATIBILITY: Pairs with most Fanimation AC motor ceiling fans with CCT Select
FAN CONTROL: 3 fan speeds and powering off
FINISH: White
GUIDELINES: Must operate in conjunction with AC motor ceiling fan
INCLUDES: Wall control only
LIGHTING CONTROL: Dimming light levels, CCT Select with LED indicator and powering lights on/off
LOCATION: Dry Rated for indoor use only, making it ideal for spaces like bedrooms, living rooms, kitchens, or offices
POWER: Hardwired with two wires
WARRANTY: 1-Year
