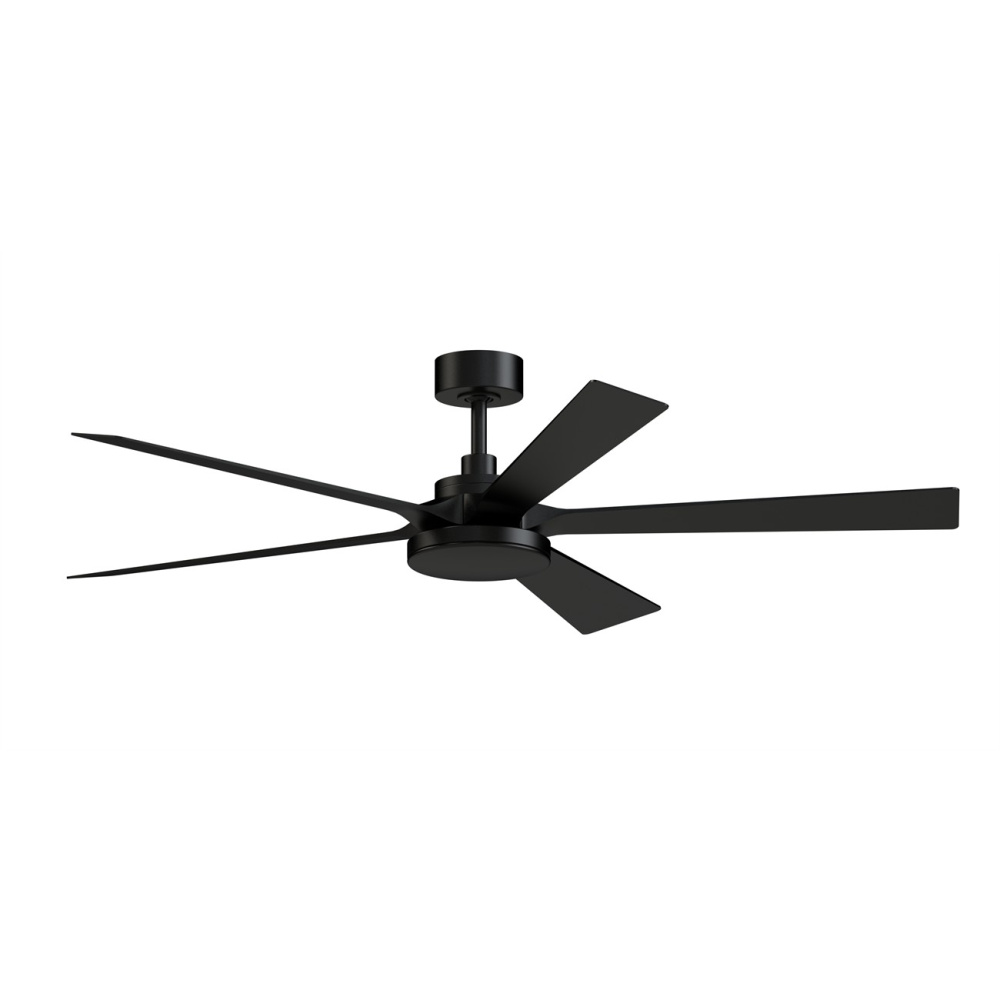

TorchAire 64 - 64 inch - BL with LED LK by Fanimation

Part Number: FPD8564BL
UPC: 00840522921106
Availability:

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (5)

Product Overview

Info & Guides

The TorchAire ceiling fan combines sleek, modern design with exceptional functionality. Available in both 52 and 64-inch sweeps, it adds an elegant touch to any space. With a powerful motor and 6-speed settings, you can easily create the ideal cooling breeze. The integrated LED light kit is energy-efficient and dimmable, allowing you to set the perfect ambiance for any occasion. Crafted for both indoor and outdoor use, the TorchAire is a versatile and stylish addition that enhances the ambiance of your home.

Specifications

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black /vendors/vendorImages black.jpg

Option:

Energy Efficient

Outdoor

Damp Rated

LED

Prop 65 /vendors/vendorImages prop65.png

Finish:

Black

Option:

Energy Efficient

LED

Outdoor

Prop 65

Family:

TorchAire 64

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow CFM:

7134

Air Flow Efficiency:

210

Blade Finish:

Black

Blade Pitch:

Blade Span:

Bulb Type:

LED Module

Canopy:

5.91 Dia x 2.51 H

Harmonized Codes:

8414.51.3000

Kelvin:

2700/3000/3500/4000/5000

Light Kit Included:

Yes

Lumens / Light Output:

2700

Motor Size:

126 x 12

Motor Type:

Ship Carton Height:

11.02

Ship Carton Length:

36.06

Ship Carton Width:

13.43

Ship Weight:

19.4

Sold By:

Each

Warranty:

1 Year

Weight:

16.76

Airflow Efficiency Low:

663

Airflow Efficiency Medium:

389

Airflow Efficiency Medium High:

298

Airflow Efficiency Medium Low:

546

Airflow Efficiency Mini:

777

Avg Airflow Efficiency:

190

Avg CFM Energy:

4718

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb Color Temp 2:

2700/3000/3500/4000/5000

Bulb CRI:

Bulb CRI 2:

Bulb Lumens 2:

1000

Cap Included:

Yes

Case Height:

11.02

Case Length:

36.06

Case Quantity:

Case Weight Pounds:

19.4

Case Width:

13.43

CEC Uploaded:

Yes

Ceiling To Blade Edge:

11.85

Ceiling To Bottom (No Light Kit):

14.34

Ceiling To Bottom (With Light Kit):

14.8

CFM Low:

3644

CFM Medium:

5287

CFM Medium High:

6142

CFM Medium Low:

4699

CFM Mini:

2774

Country of Origin:

China

Current Draw High:

0.44

Current Draw Low:

0.09

Current Draw Medium:

0.19

Current Draw Medium High:

0.31

Current Draw Medium Low:

0.13

Current Draw Mini:

0.06

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

Energy Efficient:

Yes

Exempt from DOE Procedure:

Housing Diameter:

9.57

Included Control:

TR361

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

LED:

Yes

Location Rating:

Damp Rated

Max Ceiling Slope:

Max Wattage:

Max Wattage 2:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number of Bulbs2:

Number Of Speeds:

Outdoor:

Yes

Prop 65:

View

Prop 65 Description:

View

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High:

126

RPM Low:

RPM Medium:

RPM Medium High:

110

RPM Medium Low:

RPM Mini:

Safety Rating:

UL Approved

Type of Bulbs2:

LED Module

Voltage Cycles:

60 Hz

Watts High:

Watts Low:

Watts Medium:

Watts Medium High:

Watts Medium Low:

Watts Mini:

Manufactured By:

Fanimation

Other Details

CONTROL: Includes a TR361 hand-held remote

FINISH: Black

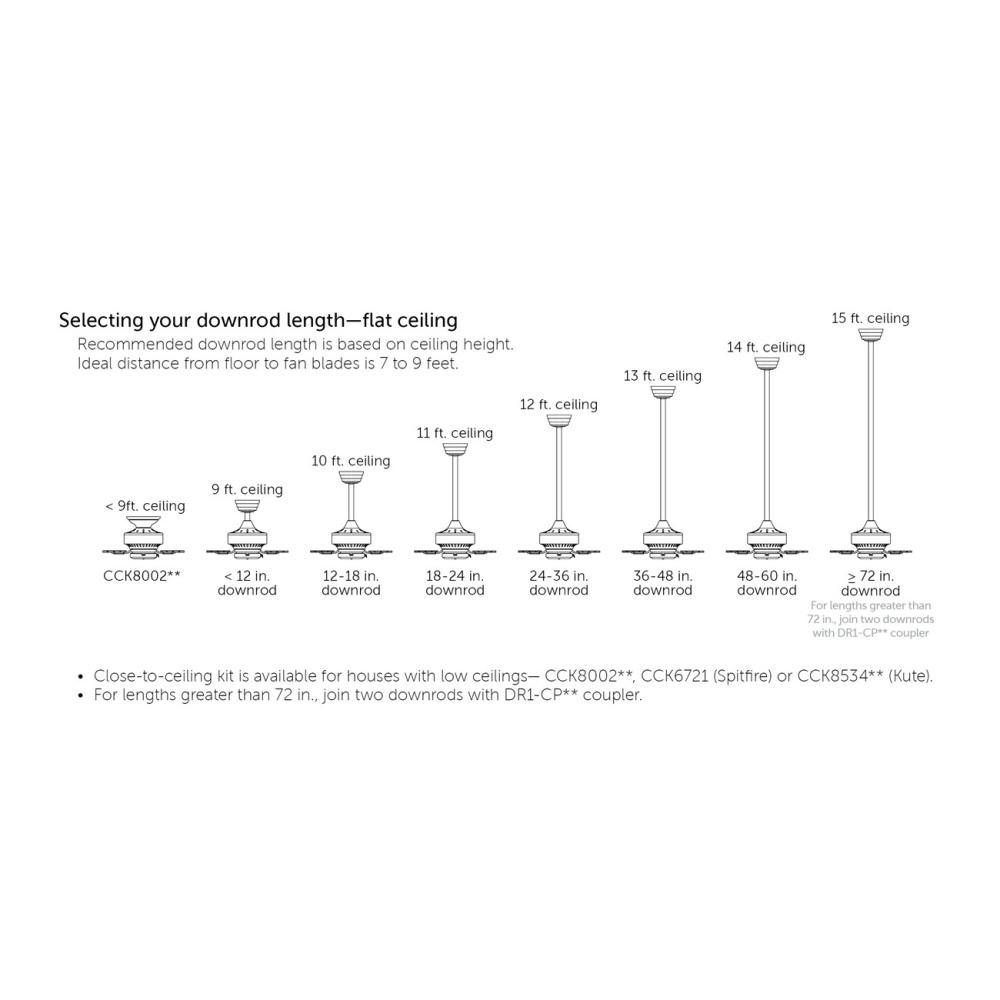

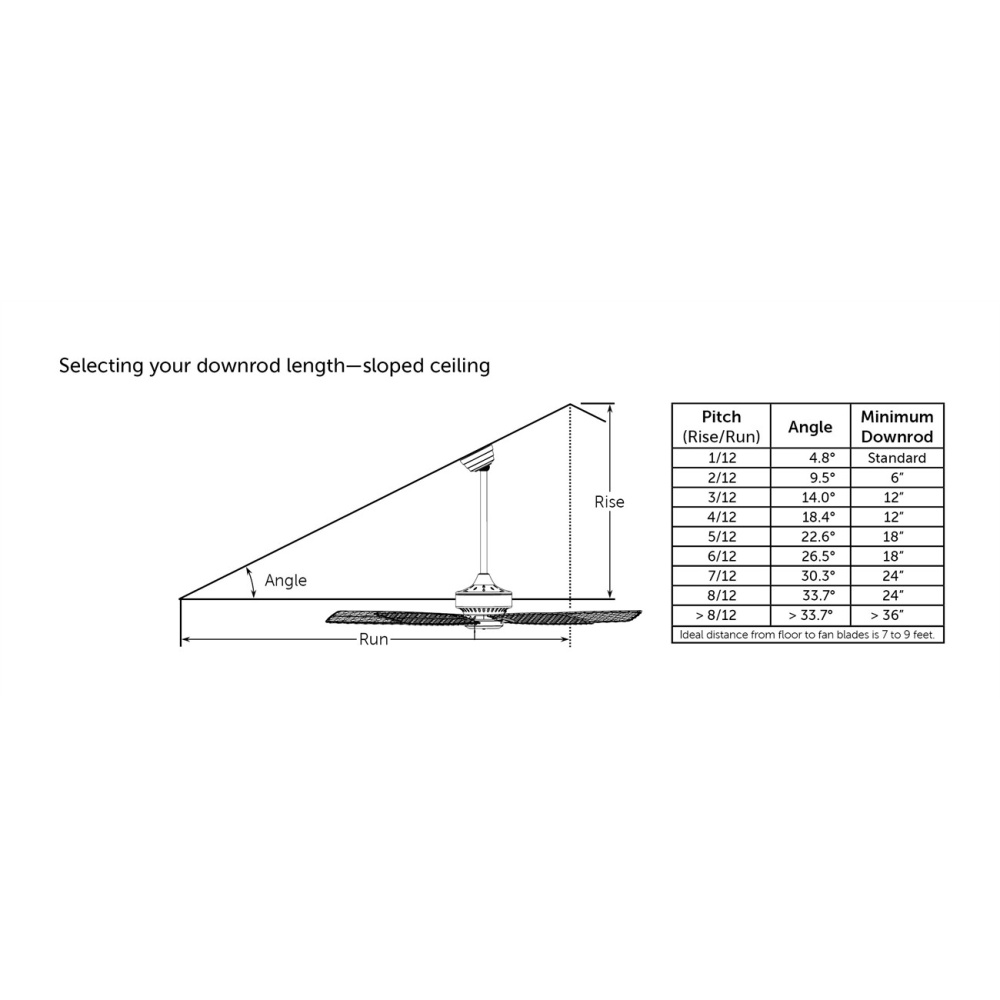

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 6-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow

LIGHTING: Includes dimmable 12-watt 5CCT LED Uplight and 30-watt 5CCT Downlight light kits with Opal Frosted Glass

LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity

POWER: The 6-speed, quiet and energy efficient DC motor provides airflow up to 7,134 CFM

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings

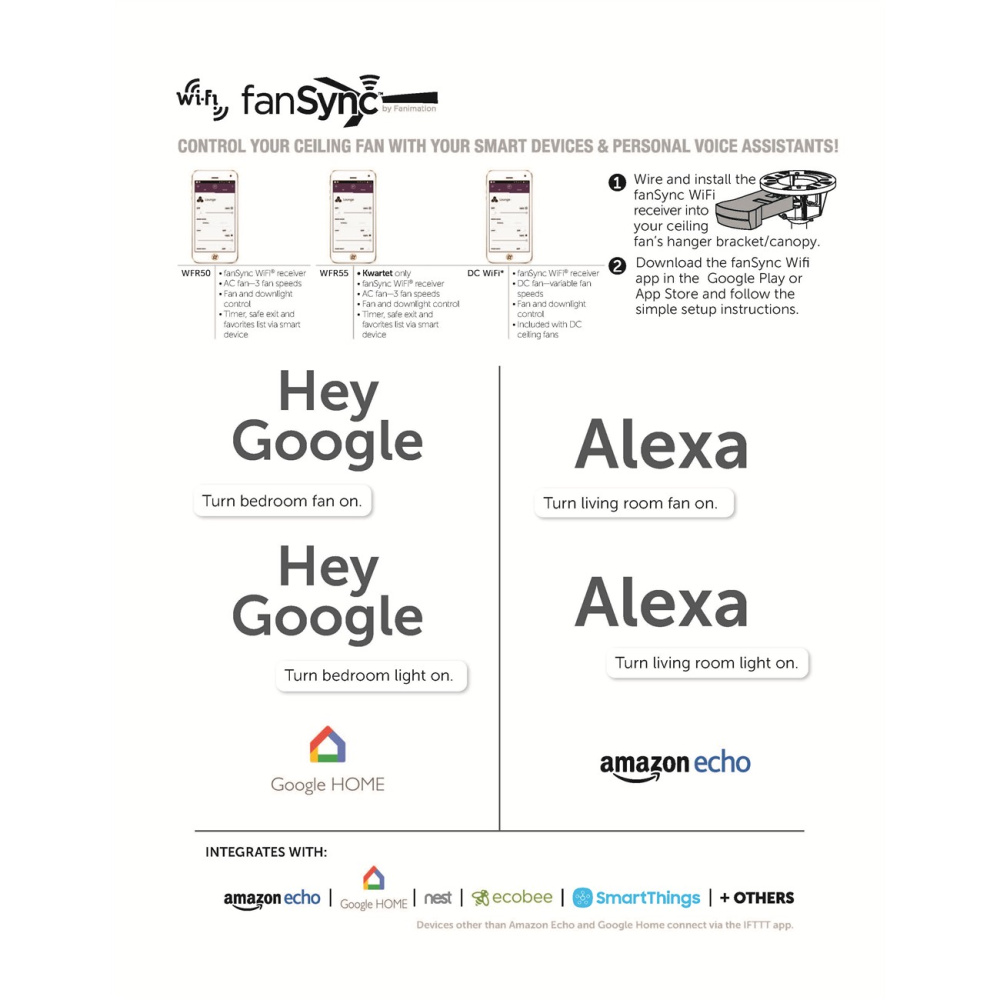

TECHNOLOGY: Correlated Color Temperature (CCT) Select Technology, provides a selection of light colors ranging from warm white, bright light or daylight and WiFi fanSync, which provides fan control with a smart device or voice assistant

WARRANTY: Limited lifetime
