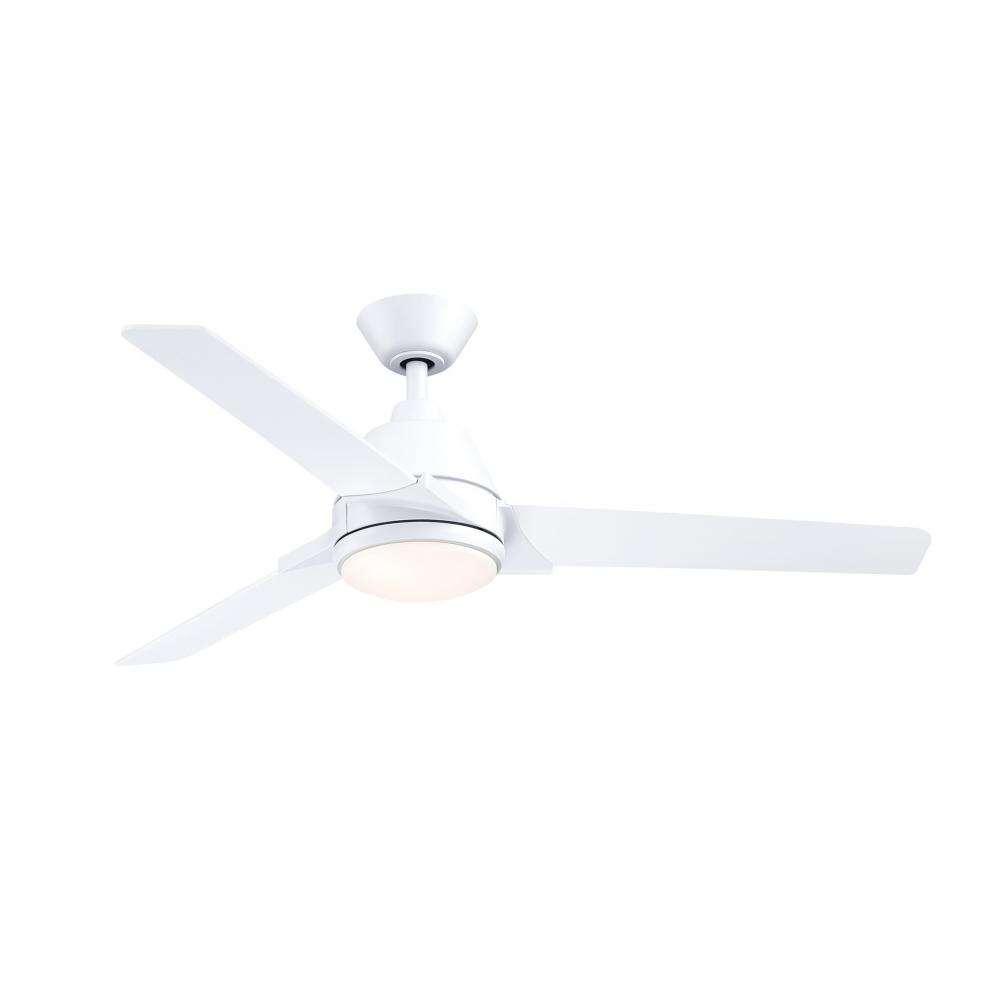

Pyramid - 52 inch - MW with MW Blades and LED LK

Pyramid - 52 inch - MW with MW Blades and LED LK by Fanimation

Part Number: FP8406MW
UPC: 00840522915648
Availability:

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (3)

Product Overview

Info & Guides

Click Here to View Specsheets

A stunning addition to your home, the 52 inch Pyramid ceiling fan features an elegant aged bronze finish that blends well in both modern and traditional decors, while a simple design and easy operation make this fan easy to install. This charming fan with 3 blades is perfect for any indoor or covered outdoor space. 3 speed settings make it easy to maintain the ideal comfort level. Includes TR400S remote, so you can control the fan from anywhere in the room.

Specifications

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White /vendors/vendorImages white.jpg

Option:

Energy Efficient

Outdoor

Damp Rated

LED

Prop 65 /vendors/vendorImages prop65.png

Number of Blades:

3 Blades

Wattage:

18w

Finish:

Matte White

Option:

Energy Efficient

LED

Outdoor

Prop 65

Family:

Pyramid

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow CFM:

4827

Air Flow Efficiency:

Blade Finish:

Matte White

Blade Pitch:

Blade Span:

Bulb Type:

LED Module

Canopy:

6.1 Dia x 2.24 H

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1500

Motor Size:

153 x 20

Motor Type:

Ship Carton Height:

8.98

Ship Carton Length:

24.41

Ship Carton Width:

9.65

Ship Weight:

19.29

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

17.4

Airflow Efficiency Low:

148

Airflow Efficiency Medium:

104

Avg Airflow Efficiency:

Avg CFM Energy:

3466

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Cap Included:

Yes

Carton Cubic Feet:

1.22

Case Height:

8.98

Case Length:

24.41

Case Quantity:

Case Weight Pounds:

19.29

Case Width:

9.65

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.18

Ceiling To Bottom (No Light Kit):

13.15

Ceiling To Bottom (With Light Kit):

14.52

CFM Low:

1924

CFM Medium:

3293

Country of Origin:

China

Current Draw High:

0.5

Current Draw Low:

0.24

Current Draw Medium:

0.37

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

4.5

Energy Efficient:

Yes

Exempt from DOE Procedure:

Housing Diameter:

8.27

Included Control:

TR500

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

LED:

Yes

Location Rating:

Damp Rated

Max Ceiling Slope:

Max Wattage:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Outdoor:

Yes

Prop 65:

View

Prop 65 Description:

View

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High:

186

RPM Low:

RPM Medium:

131

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts High:

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Other Details

CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off

FINISH: Matte White ceiling fan from the Pyramid Collection features 3 Matte White blades

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow

LIGHTING: Includes 18-watt dimmable LED light kit with an opal frosted glass shade

LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity

POWER: The 3-speed, energy efficient AC motor provides airflow up to 4,827 CFM

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings

TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)

WARRANTY: Limited lifetime
