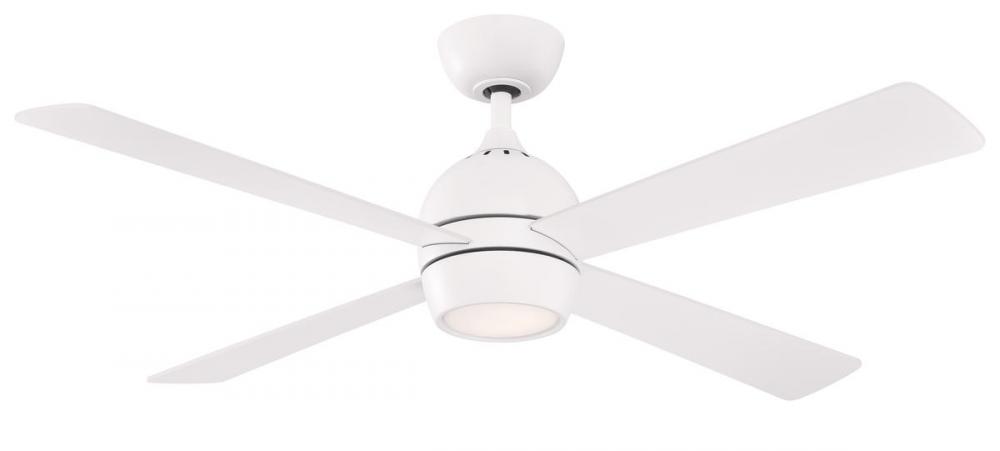

Kwad - 52 Inch - MW with LED LK by Fanimation

Part Number: FP7652MW
UPC: 00840506098077
Availability:

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (6)

Product Overview

Info & Guides

Click Here to View Specsheets

Fanimation enhances your space with the stylish Kwad ceiling fan, available in 44-inch and 52-inch blade options. Featuring a sleek four-blade design and integrated LED light kit, Kwad adds the perfect touch to any room. It includes a handheld remote control and is compatible with smart home systems when paired with the optional Wi-Fi receiver. Dry rated for indoor use, works with most smart home devices (control sold separately), and offers reversible airflow for year-round comfort

Specifications

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White /vendors/vendorImages white.jpg

Style:

Traditional

Option:

Energy Efficient

Dry Rated

LED

Prop 65 /vendors/vendorImages prop65.png

Glass Finish or Style:

Frosted

Opal

Number of Blades:

4 Blades

Location Rating:

Dry Rated

Wattage:

18w

Finish:

Matte White

Option:

Energy Efficient

LED

Prop 65

Family:

Kwad 52

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow CFM:

4738

Air Flow Efficiency:

Blade Finish:

Matte White

Blade Pitch:

Blade Span:

Bulb Type:

LED Module

Canopy:

6.5 Dia x 2.58 H

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1500

Motor Size:

153 x 13

Motor Type:

Ship Carton Height:

10.12

Ship Carton Length:

25.91

Ship Carton Width:

10.87

Ship Weight:

18.23

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

16.31

Airflow Efficiency Low:

156

Airflow Efficiency Medium:

107

Avg Airflow Efficiency:

Avg CFM Energy:

3533

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Paper Overlay

Blade Material:

Wood

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Cap Included:

Carton Cubic Feet:

1.65

Case Height:

10.12

Case Length:

25.91

Case Quantity:

Case Weight Pounds:

18.23

Case Width:

10.87

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.27

Ceiling To Bottom (With Light Kit):

15.05

CFM Low:

2168

CFM Medium:

3677

Country of Origin:

China

Current Draw High:

0.47

Current Draw Low:

0.24

Current Draw Medium:

0.38

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

4.5

Energy Efficient:

Yes

Exempt from DOE Procedure:

Housing Diameter:

8.4

Included Control:

TR500

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

LED:

Yes

Location Rating:

Dry Rated

Max Ceiling Slope:

Max Wattage:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Prop 65:

View

Prop 65 Description:

View

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High:

170

RPM Low:

RPM Medium:

127

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts High:

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Other Details

CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off

FINISH: Matte White ceiling fan from the Kwad 52 Collection features 4 Matte White blades

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.

LIGHTING: Includes integrated 18-watt dimmable LED light kit with opal frosted glass shade

LOCATION: Dry Rated for indoor use only, making it ideal for spaces like bedrooms, living rooms, kitchen, or office

Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow

POWER: The 3-speed, energy efficient AC Motor provides airflow up to 4,738 CFM

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings

TECHNOLOGY: Compatible with Fanimation WiFi fanSync and most smart home devices (required controls sold separately)

WARRANTY: Limited lifetime
