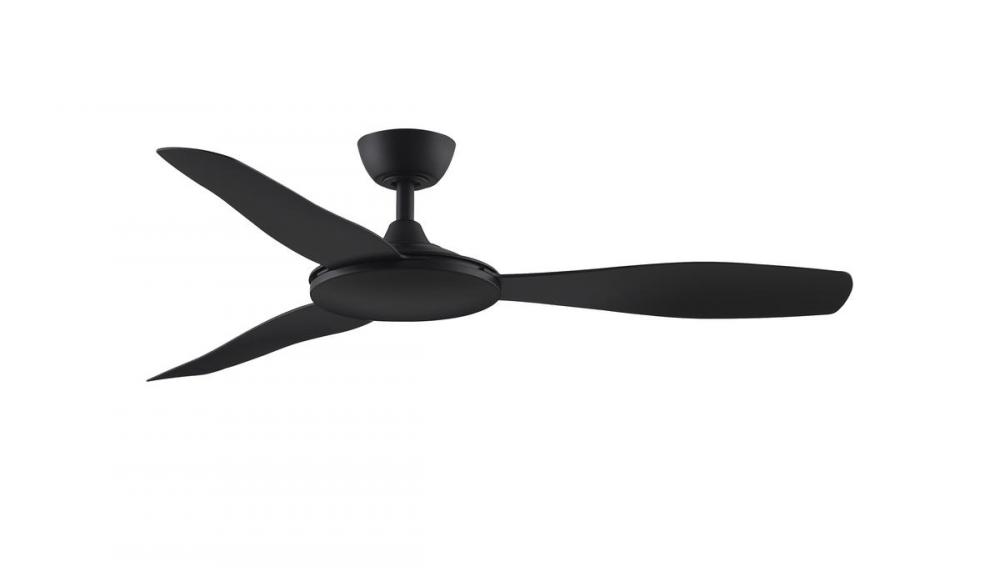

GlideAire - 52 Inch - BL with BL Blades

GlideAire - 52 Inch - BL with BL Blades by Fanimation

  • Part Number: FPD8520BL
  • UPC: 00840506084940
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with a 20 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. This ceiling fan is Damp Rated for indoor or outdoor use and compatible with most smart home devices (required control sold separately) Reversible airflow for multi-season use
Specifications
Details
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Black /vendors/vendorImages black.jpg
Style:
Traditional
Option:
Energy Efficient
Energy Star /vendors/vendorImages energy star.jpg
Outdoor
Damp Rated
Prop 65 /vendors/vendorImages prop65.png
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Finish:
Black
Option:
Energy Efficient
Energy Star
Outdoor
Prop 65
Family:
GlideAire
Voltage:
120 V
Air Flow CFM:
5538
Air Flow Efficiency:
215
Blade Finish:
Black
Blade Pitch:
15
Blade Span:
52
Canopy:
5.71 Dia x 2.23 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
158 x 15
Motor Type:
DC
Ship Carton Height:
8.58
Ship Carton Length:
24.61
Ship Carton Width:
12.8
Ship Weight:
15.9
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
13.3
Airflow Efficiency Low:
192
Airflow Efficiency Medium:
456
Avg Airflow Efficiency:
218
Avg CFM Energy:
3746
Avg Energy Use:
17
Avg Estimated Yearly Energy Cost:
5
Avg Estimated Yearly Energy Cost on HIGH:
7
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Cap Included:
No
Carton Cubic Feet:
1.56
Case Height:
8.58
Case Length:
24.61
Case Quantity:
1
Case Weight Pounds:
15.9
Case Width:
12.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
9.15
Ceiling To Bottom (No Light Kit):
9.98
CFM Low:
538
CFM Medium:
3371
Country of Origin:
China
Current Draw High:
0.36
Current Draw Low:
0.05
Current Draw Medium:
0.11
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Energy Star:
Yes
Exempt from DOE Procedure:
No
Housing Diameter:
11.02
Included Control:
TR205D
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
54
Location Rating:
Damp Rated
Max Ceiling Slope:
19
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Outdoor:
Yes
Prop 65:
View
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
173
RPM Low:
28
RPM Medium:
105
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
26
Watts Low:
3
Watts Medium:
7
Manufactured By:
Fanimation
Other Details
CONTROL: Use your smart home device with our fanSync app, or use the included TR205DS hand-held remote with two 3V CR2032 batteries - Push buttons control 16 fan speeds, fan timer, fan off, and fresh air, reverse, home away, safe exit modes
FINISH: Black ceiling fan from the GlideAire Collection features 3 Black blades
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.
LIGHTING: Light kit not included
LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow
POWER: The 16-speed, quiet and energy efficient DC Motor provides airflow up to 5,538 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: WiFi fanSync, which provides fan control with a smart device or voice assistant
WARRANTY: Limited lifetime
