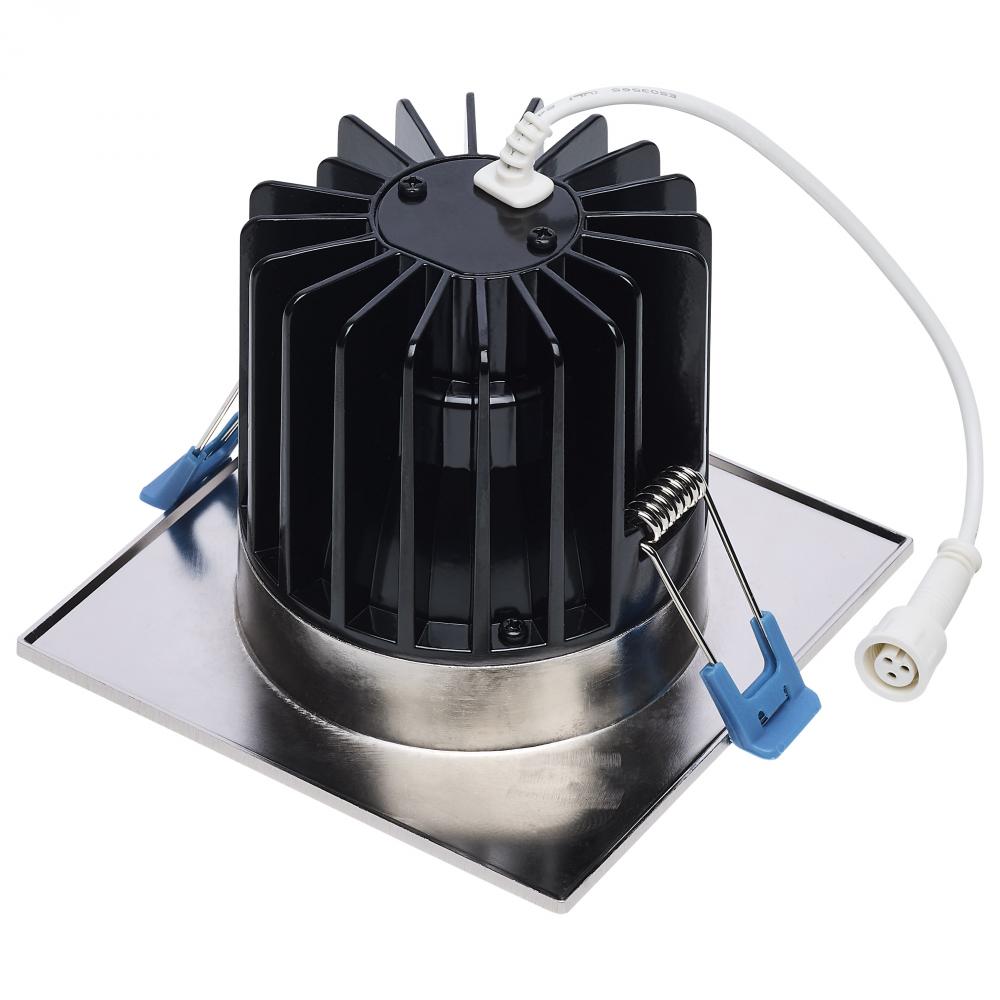

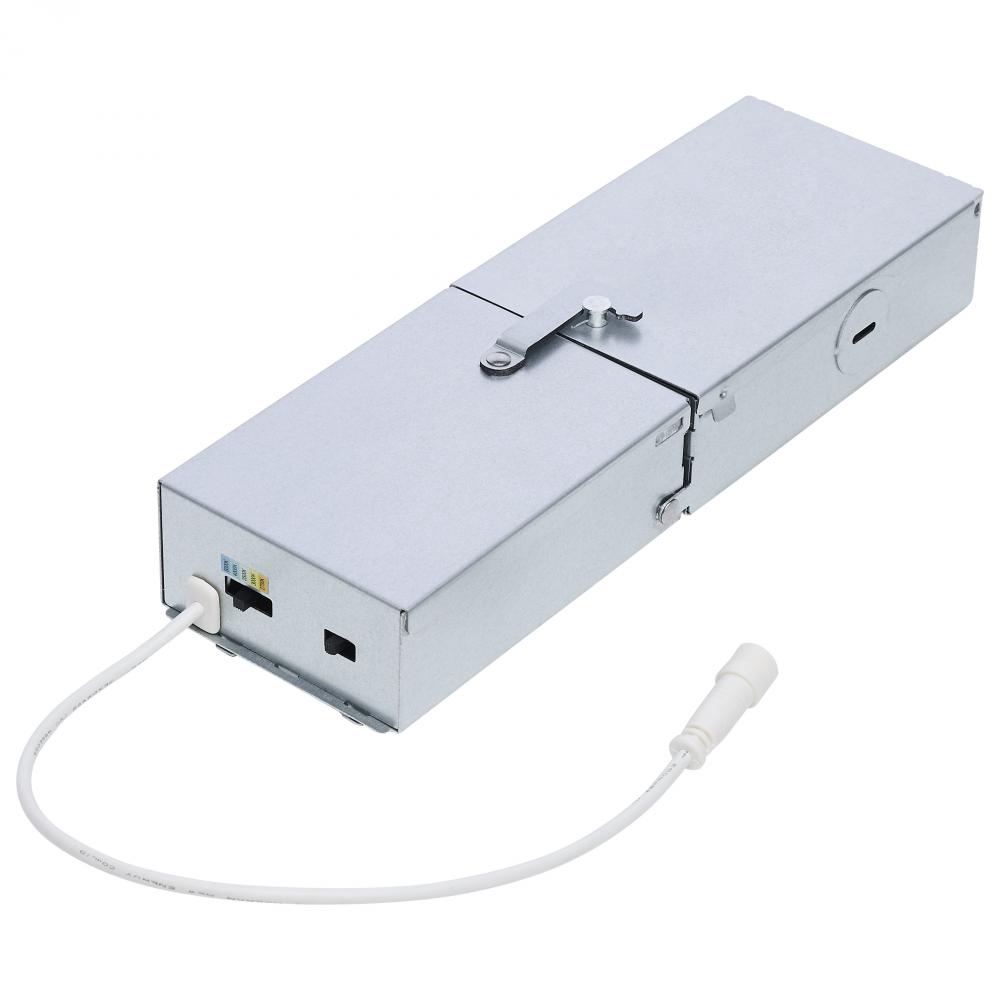

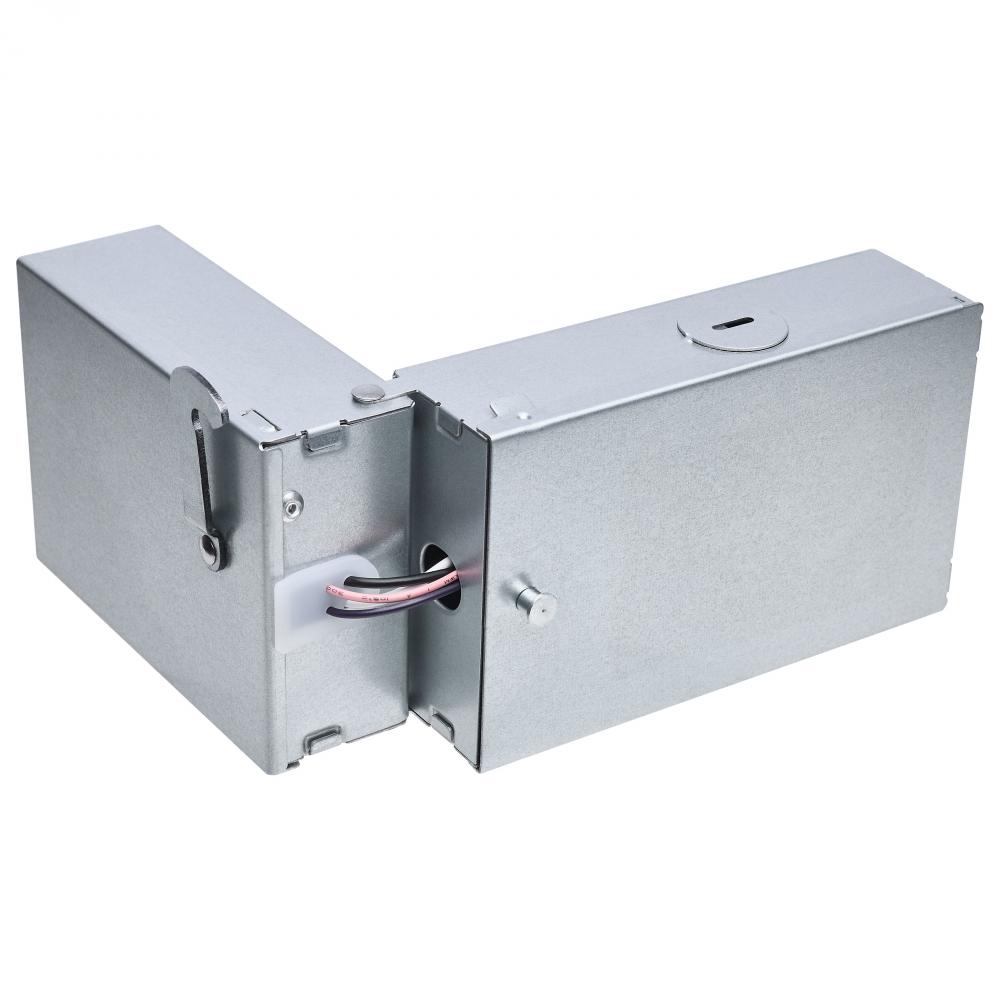

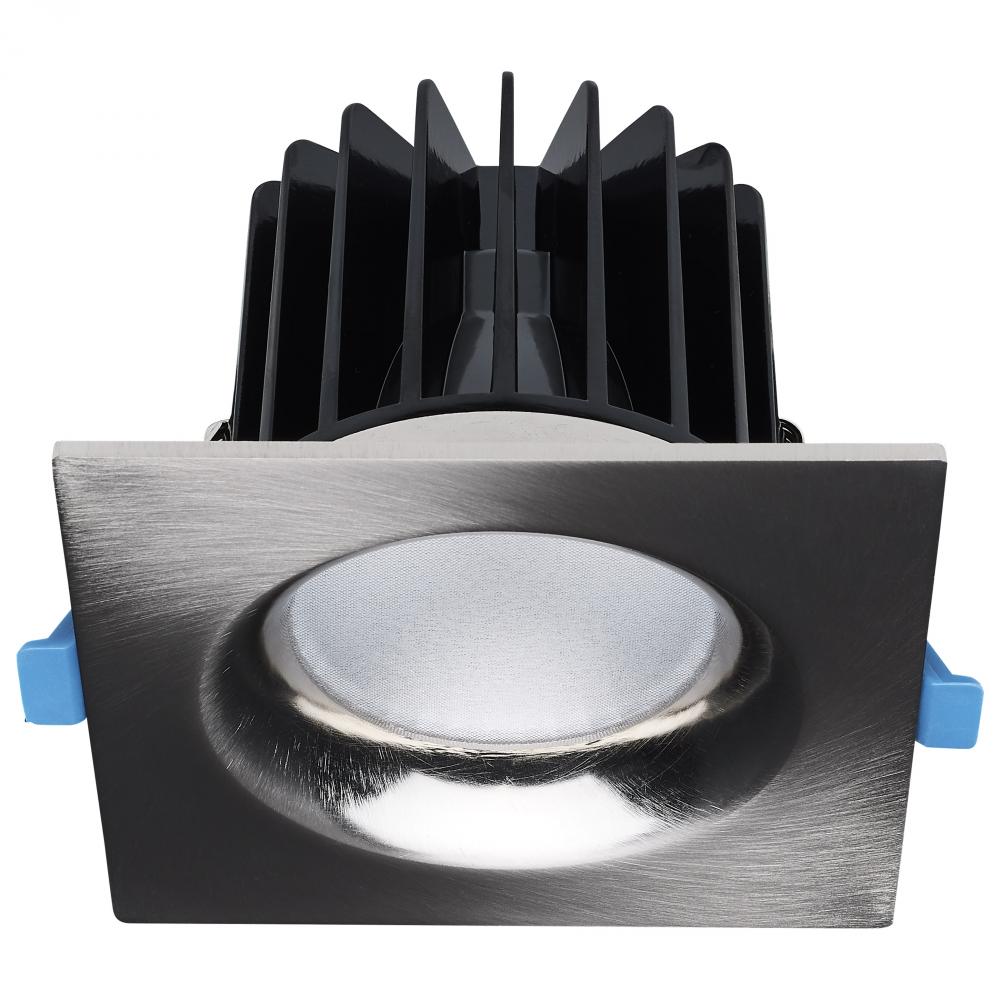

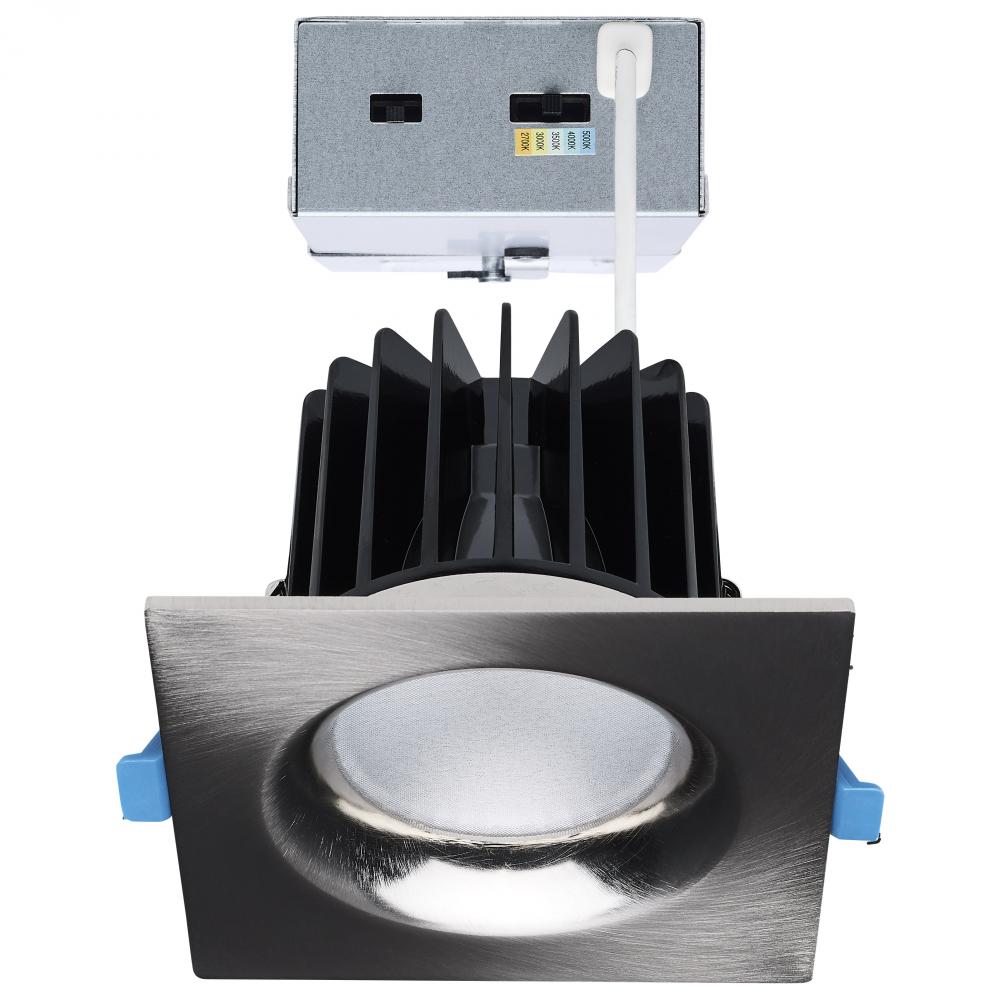

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square;

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square; by Satco Products Inc.

Part Number: S11675
UPC: 00045923116759
Availability: Supplier appears to have stock and ready to ship

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square; Brushed Nickel Finish; Dual Dimming; 120-277 Volt

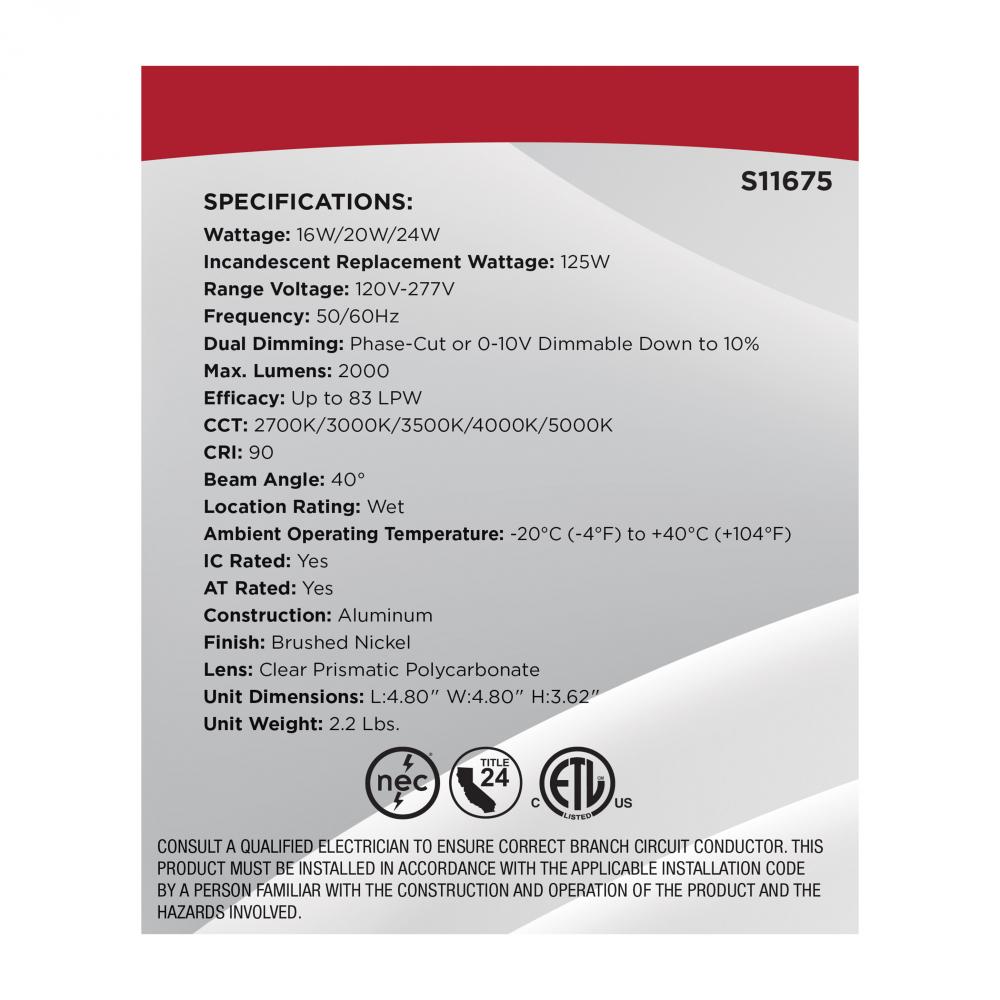

Specifications

Details

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Energy Star /vendors/vendorImages energy star.jpg

LED

Prop 65 /vendors/vendorImages prop65.png

Finish:

Brushed Nickel

Category:

Recessed

Sub Category:

Direct Wire

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

6.69

Each Length:

10.04

Each Width:

5.31

Length:

4.8

Lumens:

1300L/1600L/2000L

Tariff Code:

9405.11.6010

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.133-0.058/0.167-0.072/0.200-0.087A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

CA Prop-65:

Lead

Can Size:

3 in.

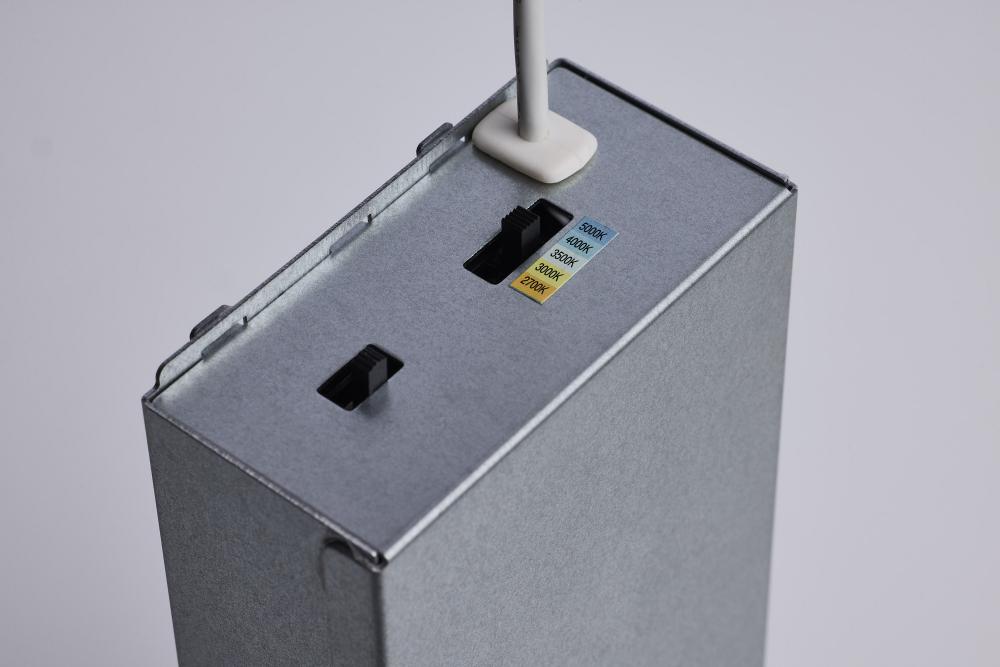

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

Thailand

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Dual Dimming: Phase-Cut and 0-10V

Dimming Type:

Dual Dimming

Each Cube:

0.2064

Each Quantity:

Efficacy:

81.25/80.00/83.33 LPW

ES Category:

Downlight Recessed

ES Unique ID:

3999678

FCC Compliant:

Yes

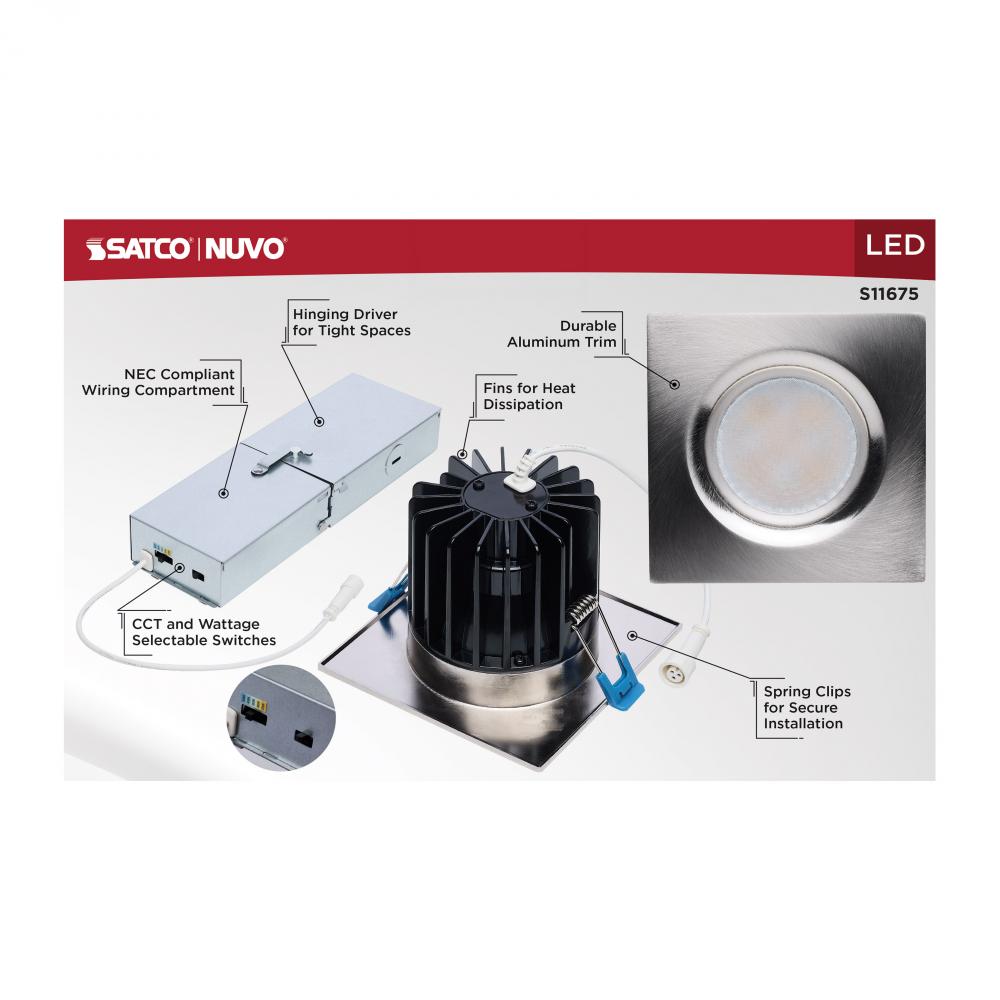

Feature 1:

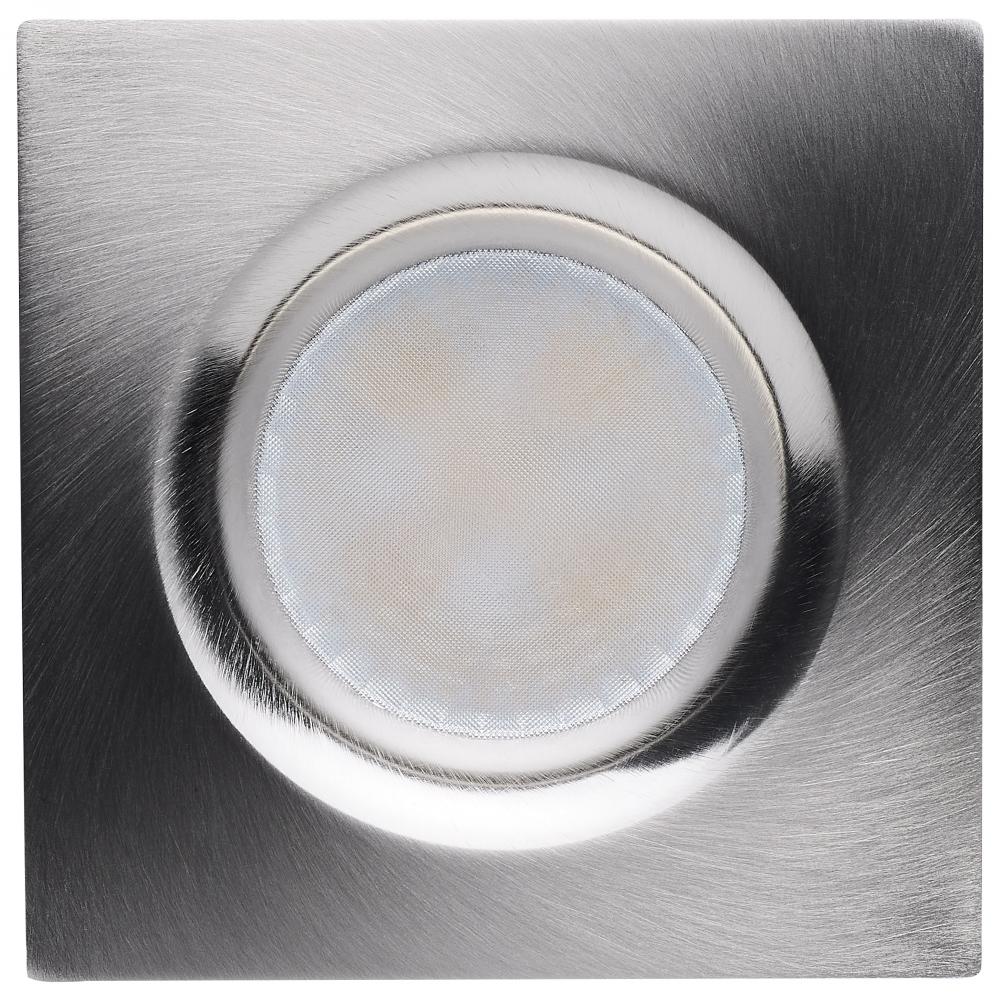

Square Trim, Brushed Nickel Finish

Feature 10:

NEC Compliant Junction Box

Feature 2:

High Output: 1300/1600/2000 Lumens

Feature 3:

16W/20W/24W Wattage Selectable (125W Replacement)

Feature 4:

2700K/3000K/3500K/4000K/5000K CCT Selectable

Feature 5:

Dual-Dimming

Feature 6:

90 CRI

Feature 7:

40-Degree Beam Angle

Feature 8:

Aluminum Trim with Polycarbonate Lens

Feature 9:

FT6 Cable Included for Commercial Plenums

Finish Family:

Brushed Nickel

Fixture shape:

Square

Has Camera:

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Clear Prismatic

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO S11675 LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose

Material:

Aluminum

Mounting Diameter:

3.62

Mounting Height:

4.0

Mounting Procedure:

Recessed Direct Wire

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO LED Architectural Downlights offer a high lumen output, making them ideal for high ceiling applications. With a 40-degree beam angle, these downlights provide ample illumination in residential, hospitality and retail applications. Choose from th

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

24WLED/DW/DNL3/FS/SQ/DD/BN

Sloped Ceiling Compatible:

Specification Notes:

Default wattage setting: 20W

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Material:

Aluminum

Wattage Selectable:

Yes

Weight Lb.:

2.2

Manufactured By:

Satco Products Inc.
