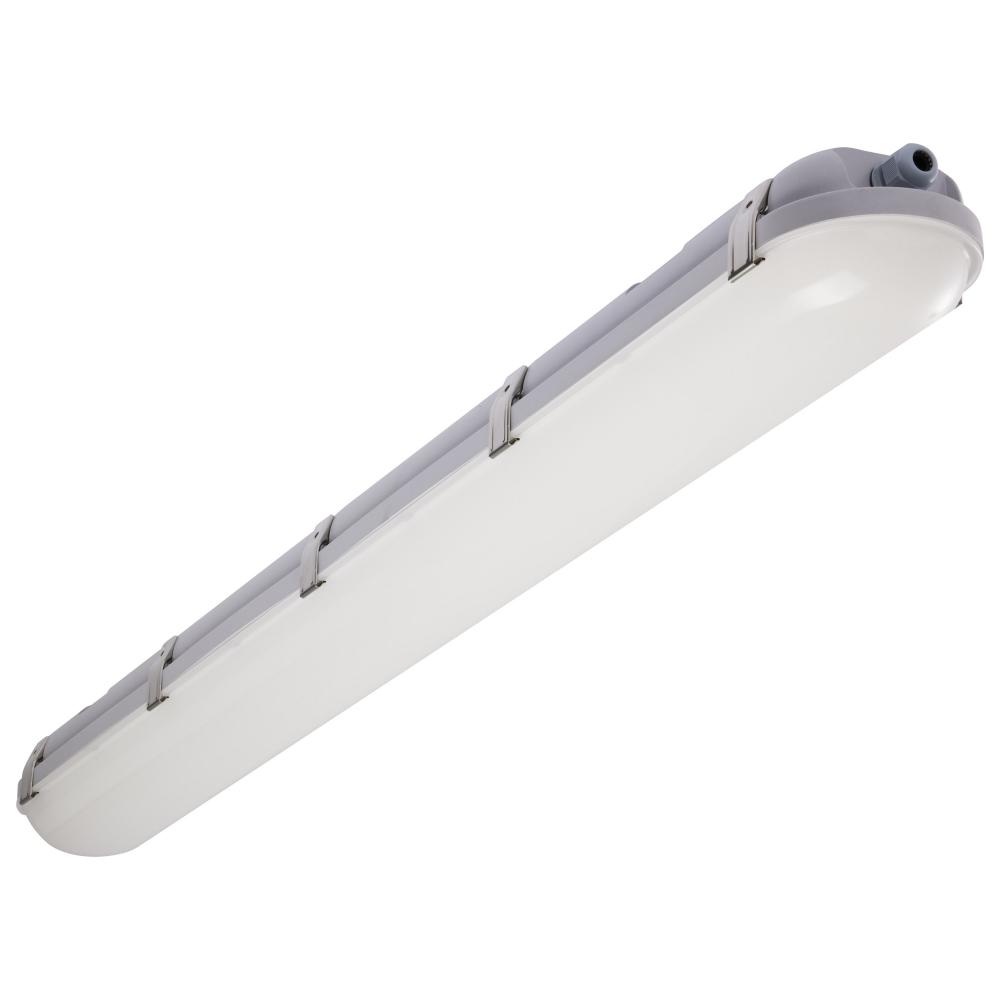

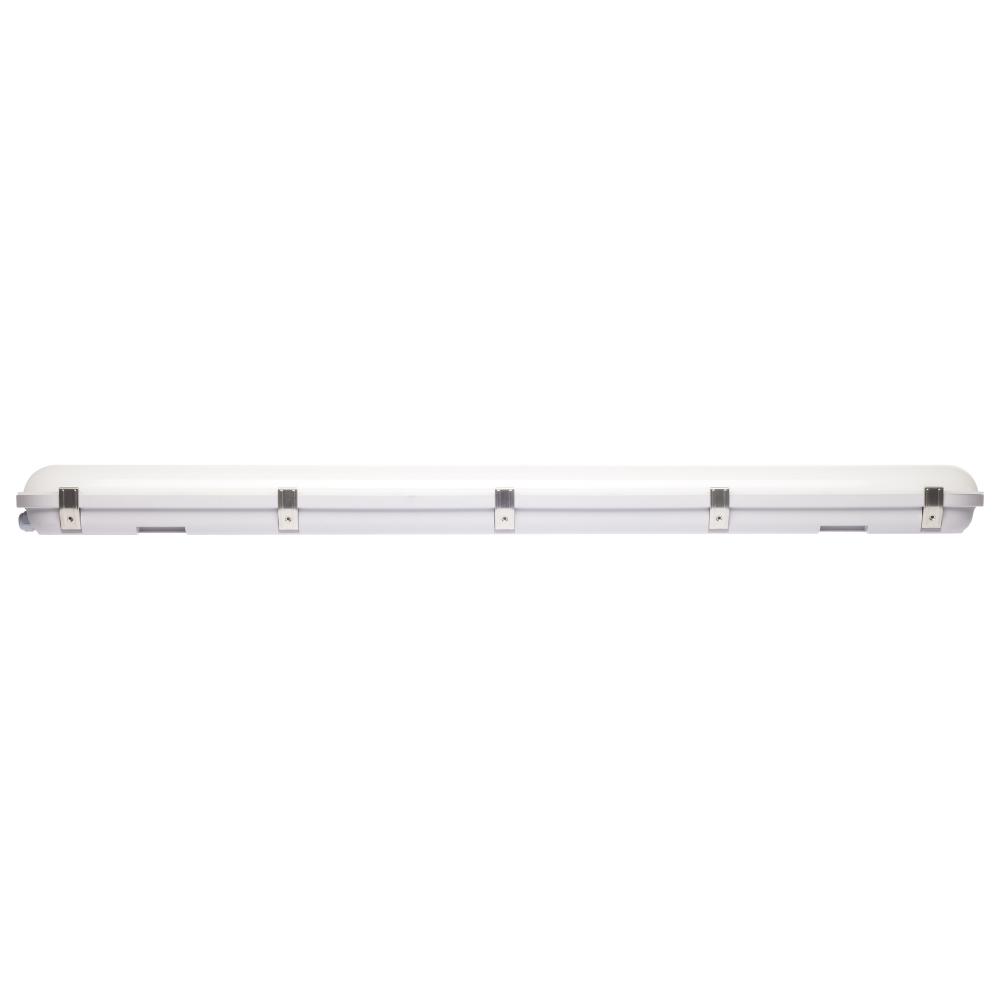

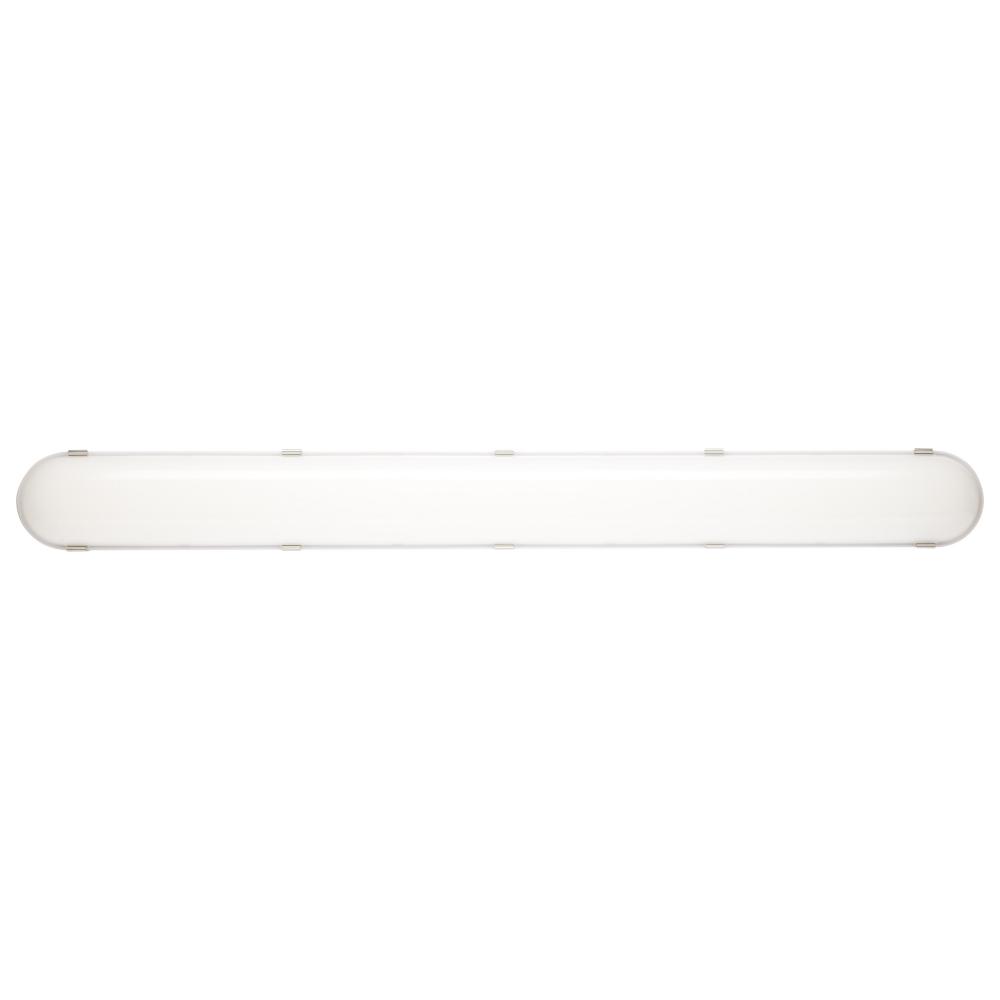

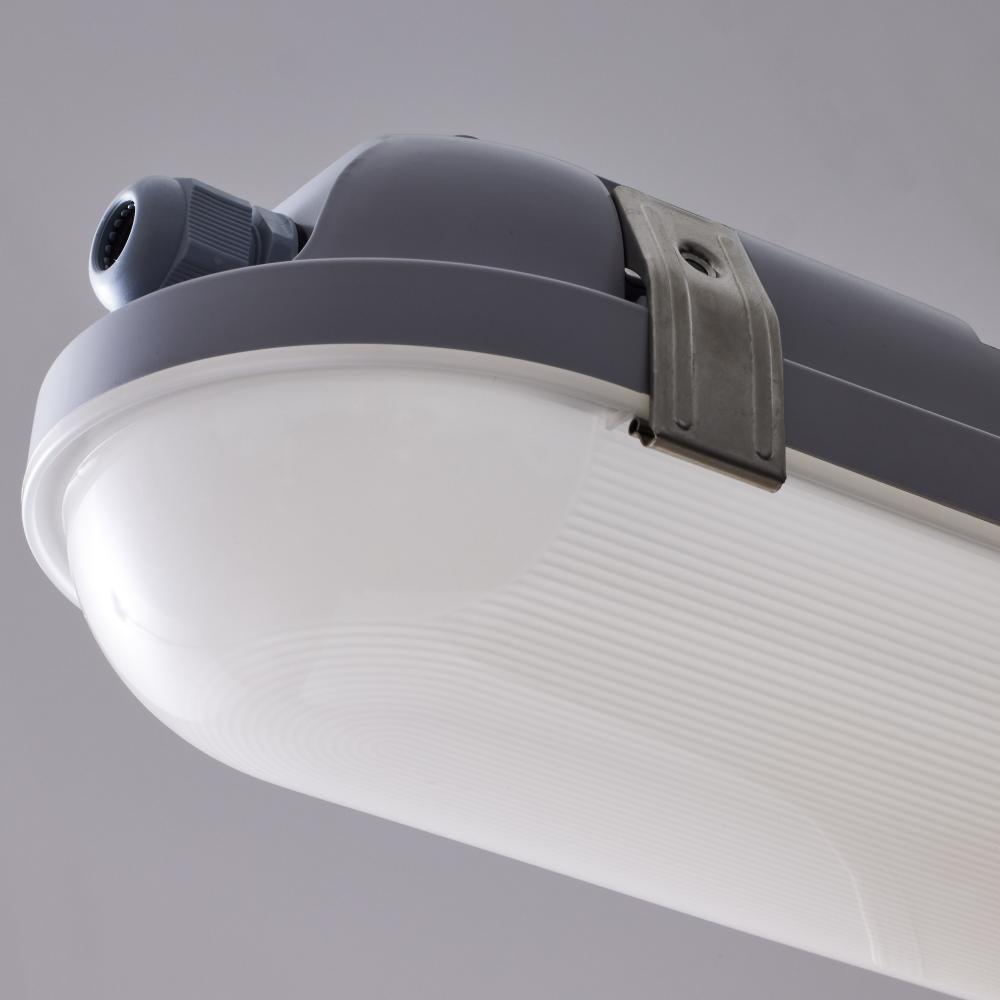

4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65

4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 by Nuvo

Part Number: 65/824R1
UPC: 00045923650994
Availability:

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V

Specifications

Details

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Gray /vendors/vendorImages gray.jpg

Option:

LED

Prop 65 /vendors/vendorImages prop65.png

Finish:

Gray /vendors/vendorImages gray.jpg

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

3.94

Each Length:

49.61

Each Width:

5.71

Length:

47.24

Lumens:

5360L-7991L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Amps:

0.333-0.115/0.417-0.144/0.500-0.173A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Thailand

CRI:

80+

Dimmable Function:

0-10V; Integrated Sensor; Bi-Level Dimmable

DLC Classification:

Standard; Standard

DLC Primary Use:

Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires

Each Cube:

0.6459

Each Quantity:

Efficacy:

134.00/133.51/133.18 LPW

FCC Compliant:

Yes

Feature 1:

Field Selectable - 3 CCT and 3 Wattage

Feature 10:

Suspension kit (sold separately)

Feature 2:

4 foot

Feature 3:

Vapor Proof with Microwave Sensor Model

Feature 4:

120-347 Voltage

Feature 5:

Durable, Gray Polycarbonate Material

Feature 6:

IP65 & IK08 Rated

Feature 7:

Wet Location Rated

Feature 8:

5 Year Warranty

Feature 9:

50,000 Hour Functional Life

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

HID Equiv:

125W-150W

Impact Rating (IK):

IK08

Incandescent Equivalent:

300W-400W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Finish:

Opaque

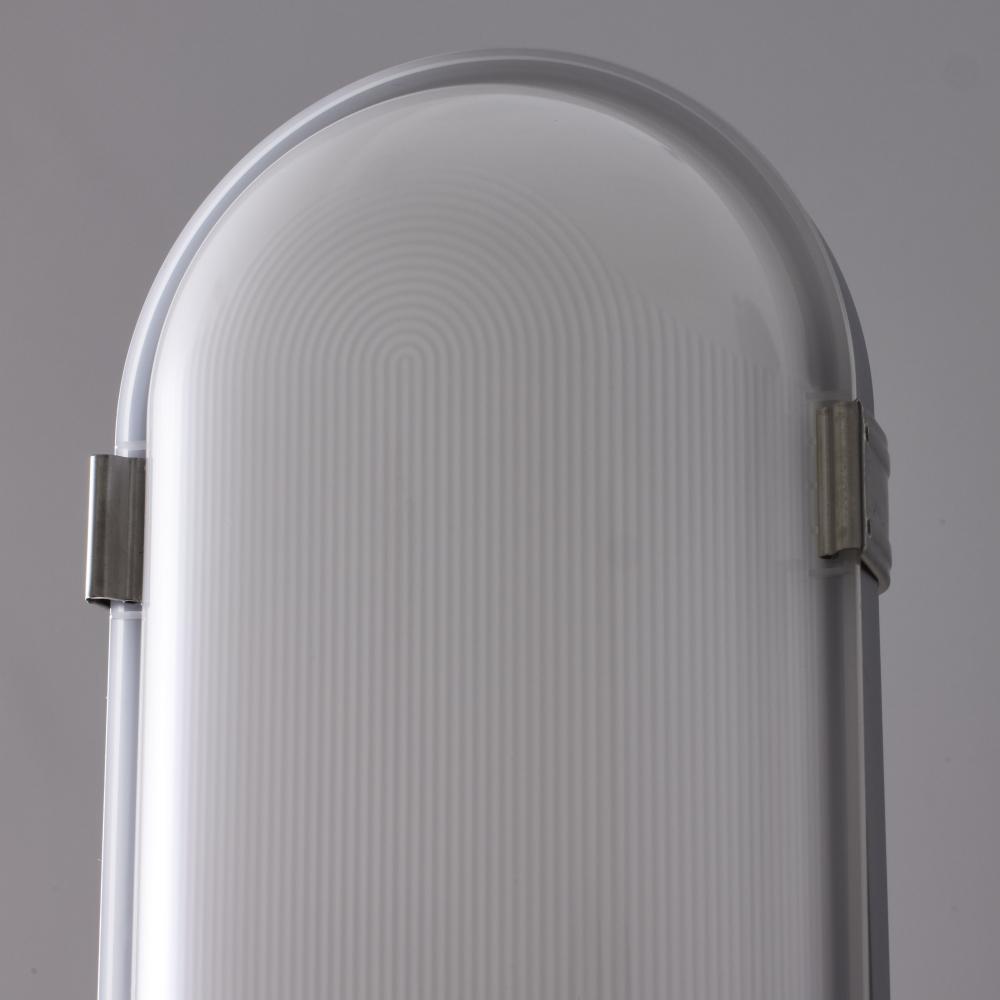

Lens Material:

Polycarbonate (PC)

Long Description:

The SATCO NUVO 65-824R1 4 foot Vapor Proof LED fixture offers durability, flexibility, and advanced control. Featuring field-selectable wattages of 40W, 50W, or 60W along with 3 CCT selectable options, it delivers versatile illumination. An integrated micr

Material:

Polycarbonate (PC)

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Photocell:

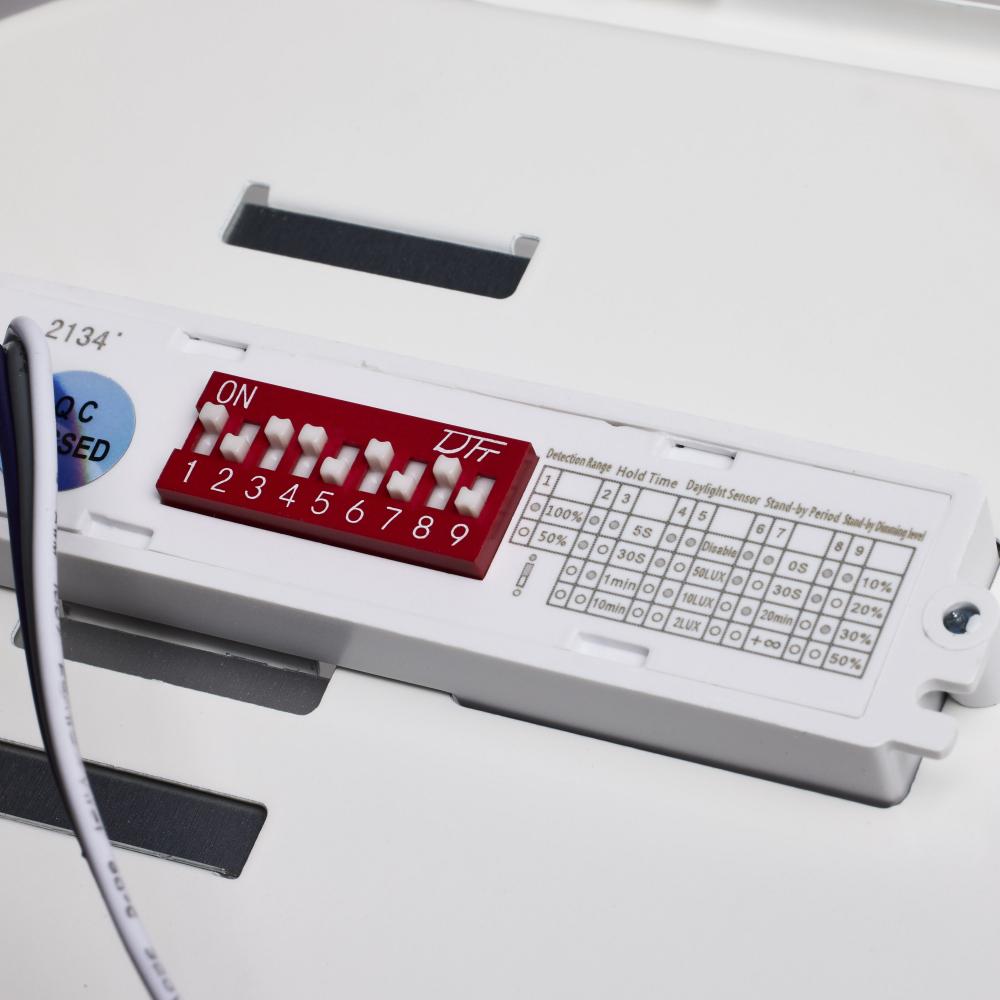

Integrated Microwave Sensor

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

4' LINEAR VAPOR PROOF W/SENSOR

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

17.60%

Wattage Selectable:

Yes

Weight Lb.:

5.29

Manufactured By:

Nuvo
