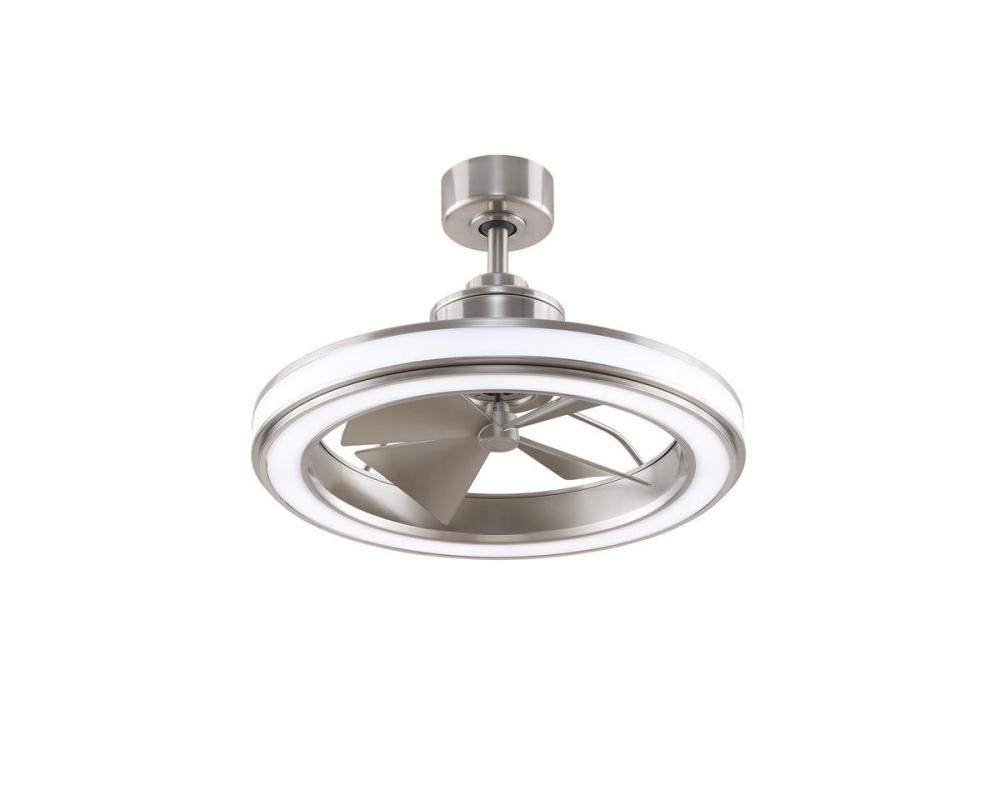

Gleam - 16 inch - BN with LED LK by Fanimation

Part Number: FP8404BN
UPC: 00840506085589
Availability:

Quantity:

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (2)

Product Overview

Info & Guides

Click Here to View Specsheets

Gleam by Fanimation will take center stage in your home. This sleek fan is available in two finish combinations and comes with a 20 watt LED light kit with opal frosted glass. Gleam has a 3 speed AC motor. This ceiling fan is Damp Rated for indoor or outdoor use and compatible with most smart home devices (required control sold separately) Reversible airflow for multi-season use

Specifications

Details

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Transitional

Option:

Energy Efficient

Outdoor

Damp Rated

LED

Prop 65 /vendors/vendorImages prop65.png

Glass Finish or Style:

Frosted

Opal

Number of Blades:

4 Blades

Subfinish:

Brushed Nickel

Location Rating:

Damp Rated

Wattage:

20w

Finish:

Brushed Nickel

Option:

Energy Efficient

LED

Outdoor

Prop 65

Family:

Gleam

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow CFM:

1531

Air Flow Efficiency:

Blade Finish:

Brushed Nickel

Blade Pitch:

Blade Span:

Bulb Type:

LED Module

Canopy:

5.75 Dia x 2.57 H

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

2200

Motor Size:

82 x 30

Motor Type:

Ship Carton Height:

11.5

Ship Carton Length:

25.71

Ship Carton Width:

25.63

Ship Weight:

25.55

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

20.9

Airflow Efficiency Low:

Airflow Efficiency Medium:

Avg Airflow Efficiency:

Avg CFM Energy:

1206

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Cap Included:

Carton Cubic Feet:

4.39

Case Height:

11.5

Case Length:

25.71

Case Quantity:

Case Weight Pounds:

25.55

Case Width:

25.63

CEC Uploaded:

Yes

Ceiling To Blade Edge:

14.67

Ceiling To Bottom (With Light Kit):

14.91

CFM Low:

839

CFM Medium:

1287

Country of Origin:

China

Current Draw High:

0.38

Current Draw Low:

0.25

Current Draw Medium:

0.34

DOE Classification:

VSD

DOE-FTC Uploaded:

Yes

Downrod Length:

4.5

Energy Efficient:

Yes

Exempt from DOE Procedure:

Housing Diameter:

23.7

Included Control:

TR500

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

LED:

Yes

Location Rating:

Damp Rated

Max Ceiling Slope:

Max Wattage:

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Outdoor:

Yes

Prop 65:

View

Prop 65 Description:

View

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High:

563

RPM Low:

325

RPM Medium:

461

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts High:

44.8

Watts Low:

17.5

Watts Medium:

33.3

Manufactured By:

Fanimation

Other Details

CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off

FINISH: Brushed Nickel ceiling fan from the Gleam Collection features 4 Brushed Nickel blades

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod.

LIGHTING: Includes integrated 18-watt dimmable LED light kit with opal frosted glass shade

LOCATION: Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity

Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow

POWER: The 3-speed, energy efficient AC Motor provides airflow up to 1,531 CFM

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings

TECHNOLOGY: Compatible with Fanimation WiFi fanSync and most smart home devices (required controls sold separately)

WARRANTY: Limited lifetime
